Honda Dio 125

Honda Dio 125 Specifications

The Honda Dio series can now be had with a more powerful engine. It is powered by the same 125cc engine as the Honda Grazia. The Dio 125 uses a 125cc, single-cylinder, air-cooled petrol mill, which is tuned to churn out 8.14 bhp at 6000 rpm and 10.2 Nm of peak torque at 5000 rpm. It can make the rear wheel spin via a continuously variable transmission (CVT) automatic gearbox. It is also equipped with Honda’s Enhanced Smart Power (eSP) technology.

This 125cc engine is also OBD2 compliant and boasts advancements, such as a Honda ACG starter, reduced friction, improved tumble flow, enhanced combustion, and solenoid valves.

For improved fuel efficiency, the Honda Dio 125 also incorporates an idle start/stop system.

As for the suspension setup of the Honda Dio 125, it stands on telescopic forks at the front and a three-step preload adjustable single spring suspension at the rear. This locally-produced 125cc scooter has such a suspension setup that it makes it suitable for Indian roads. Other specifications of this scooter comprise five-spoke alloy wheels with 12-inch rims at the front and 10-inch at the rear. Moreover, the braking duties are taken care of by optional disc-drum brakes.

The size of the front and rear brakes is rated at 130mm. The Honda Dio 125 has a tyre profile of 90/90 12 and 90/100 R12 at the front and rear, respectively. Both are tubeless tyres.

Honda Dio 125 Exterior

In terms of design, the Honda Dio 125 looks more or less the same as the standard Honda Dio. The Honda Dio 125’s exterior incorporates an apron-mounted headlight, front turn indicators, a split-style pillion grabrail, and sharp yet sleek body panels, alongside a dual exhaust with chrome plating. To give the Honda Dio 125 its own identity, the Japanese two-wheeler manufacturer has offered new graphics as well as logos.

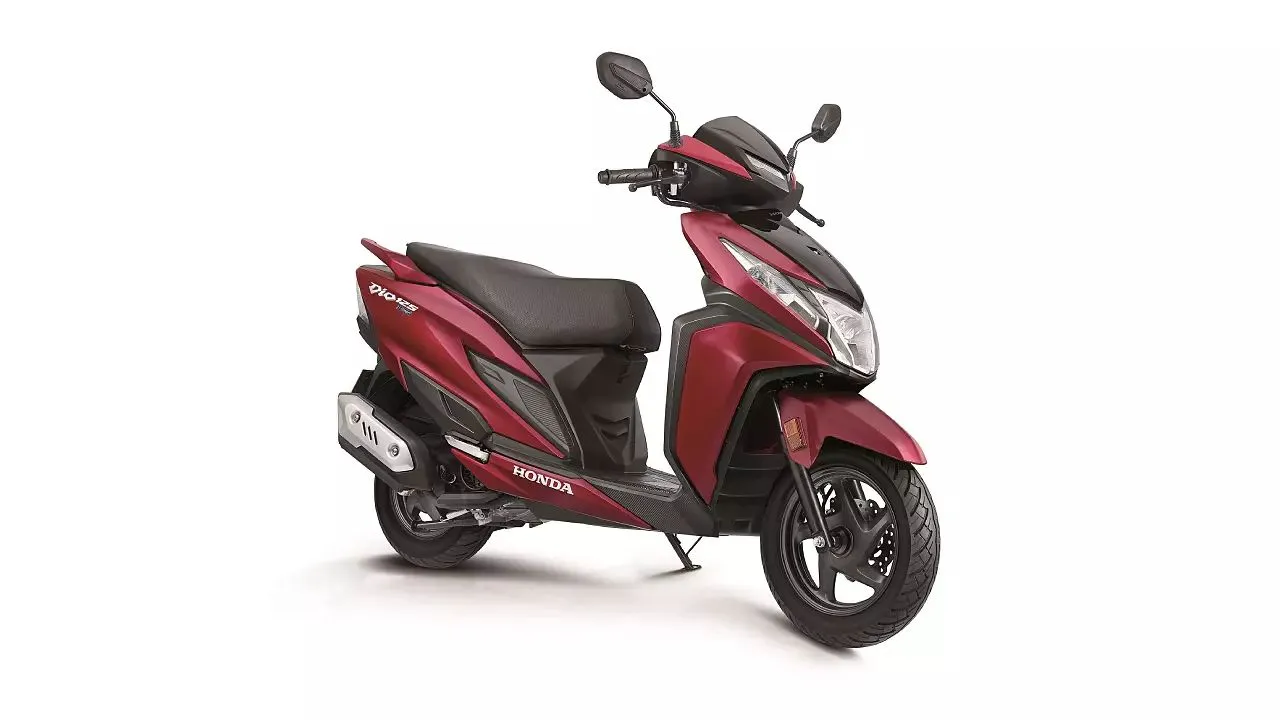

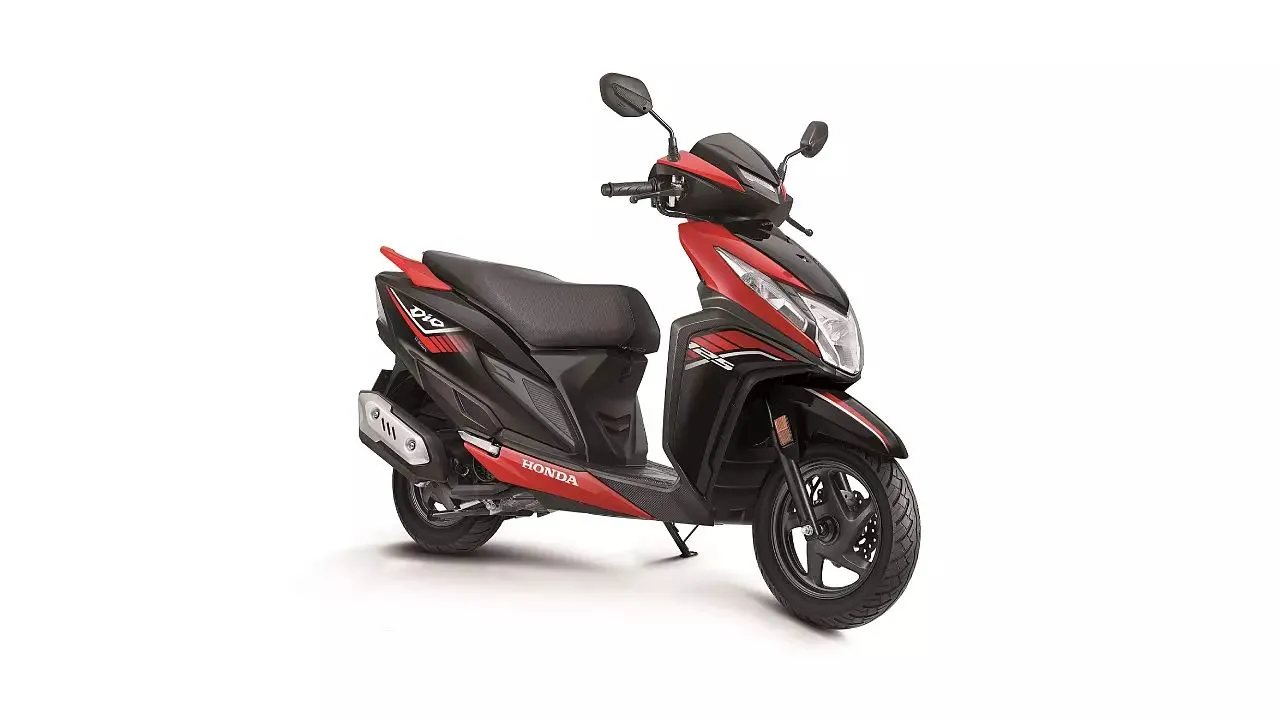

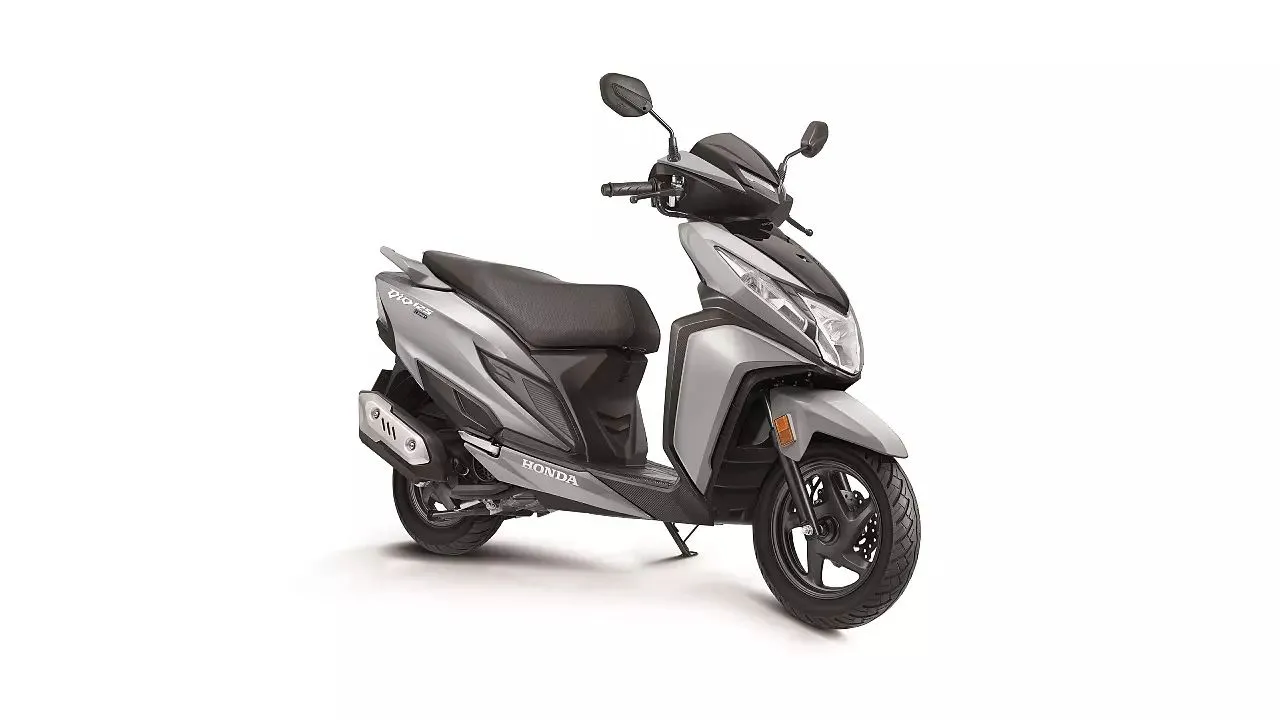

Moreover, customers can choose the exterior colour of this 125cc scooter from seven exciting colours: Pearl Deep Ground Grey, Pearl Siren Blue, Pearl Night Star Black, Sports Red, Mat Marvel Blue Metallic, Mat Axis Grey Metallic, and Mat Sangria Red Metallic.

Honda Dio 125 Dimensions and Weight

As far as the proportions of the Honda Dio 125 are concerned, this 125cc offering has an overall length of 1830mm, a width of 707mm, and a height of 1172mm. It sits on a wheelbase of 1260mm. The seat height of the Honda Dio 125 is rated at 708mm.

Furthermore, this scooter has a good clearance, which is rated at 171mm, making it more suitable for Indian roads. For your reference, the 110cc version of the Honda Dio has a lower ground clearance, rated at 160mm.

Apart from that, the Honda Dio 125 has a kerb weight of 104kg.

Honda Dio 125 Features

The Honda Dio 125 has a good number of necessary new-age features. This 125cc scooter is equipped with a fully digital instrument cluster, which shows relevant readings, such as the distance travelled, speed (km/h), fuel gauge, and clock. It is also equipped with a side-stand alarm.

As for convenience, the Honda Dio 125 is equipped with a low fuel indicator, a low fuel oil indicator as well as a low battery indicator.

Apart from that, this scooter also incorporates other offerings, such as a front storage box, under-seat storage, a killswitch, an electric start, and a pillion seat with grabrails and footrests.

Moreover, the Honda Dio 125 is equipped with LED headlights, an idling start/stop system, a side-stand indicator with engine cut-off, a passing switch, etc. For added safety, this 125cc iteration of the Honda Dio also boasts a combined braking system (CBS). At the same time, it also features H-Smart Technology, keyless start, security functions as well as smart find.

Honda Dio 125 Prices and Variants

The Japanese two-wheeler manufacturer offers the Honda Dio 125 in two variants: Standard (STD) and Smart.

The Honda Dio 125’s price is similar to other 125cc scooters from its segment, such as the TVS NTORQ 125, TVS Jupiter, Honda Activa 6G, and the Suzuki Access, to name a few.
